Stallion Electric Motor
Total 21 items found in Stallion Electric Motor

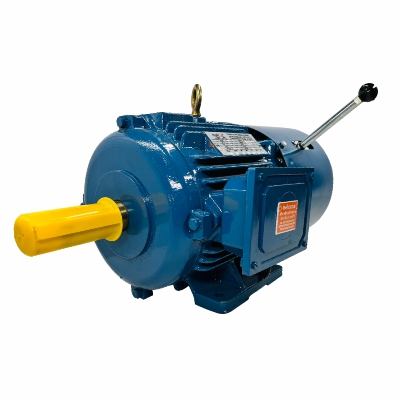

Crane And Hoist Duty Motors
Approx. Price: : ₹ 3700 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| Brand | Stallion |
| Power | Upto 90 kW |
| Phase | Three Phase |
| Product Type | Electric Motor |
| Material | Electric |
| Size/Dimension | As Per Standard |
| Speed | Upto 3000 RPM |
| Max Load Capacity | Upto 120 HP / 90 KW |
| Voltage | 415 V AC +/-10% |
| Usage/Application | All Type of Micro, Small, Medium, Heavy And Large Scale of Industries |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Part Number | As Per IS Standard |
| Capacity | Upto 120 HP / 90 KW |
| Power Source | 3-Phase (Can customized 1-Phase on request) |
| Number Of Poles | 2, 4, 6 & 8 |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL110 |
| No Load Speed | Upto 3000 RPM |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Frame size customized also As per Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
Crane And Hoist Duty Motors
View More

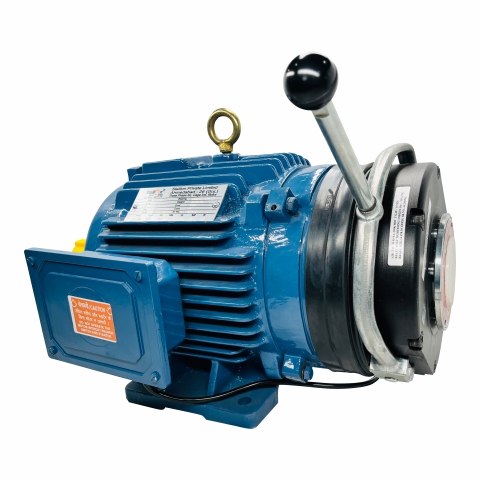

Brake Motors
Approx. Price: : ₹ 7598 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting, Lifting & Other All Type Of Industries |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Speed (Rpm) | Upto 3000 RPM |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| Power (Watts or HP) | Upto 90 KW / 120 HP |
| Motor Voltage | 415 V AC +/-10% |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL81 |
| No Load Speed | Upto 3000 RPM |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with AC Brake OR DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- Uses in all Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- AC Brake Supply Voltage : 415 V, 230 V, 220 V
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding:Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation:Class-F with temperature rise as Class-B
- Rotor Winding:Pressure die-cast aluminum
- Stamping:CRNO
- Bearing:ZZ Sealed
- Shaft:EN-8 C40 Steel
Paint :
- Shade:In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type:Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Brake Motor
View More

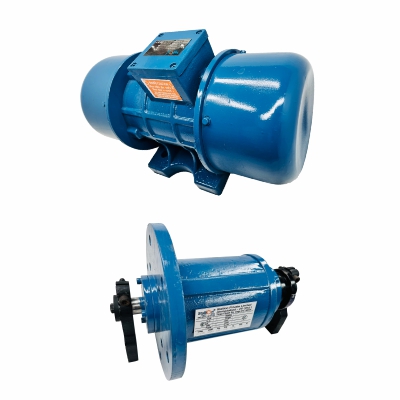

Vibrator Motor
Approx. Price: : ₹ 15500 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Vibrator Motor
View More

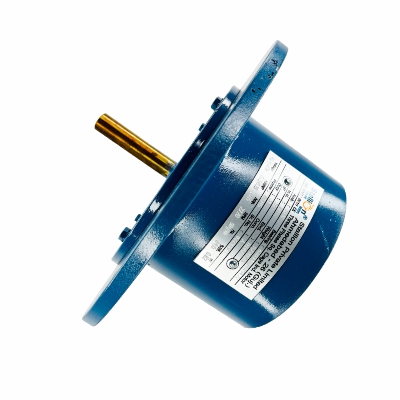

Pharma Motors
Approx. Price: : ₹ 14500 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Pharma Motors
View More

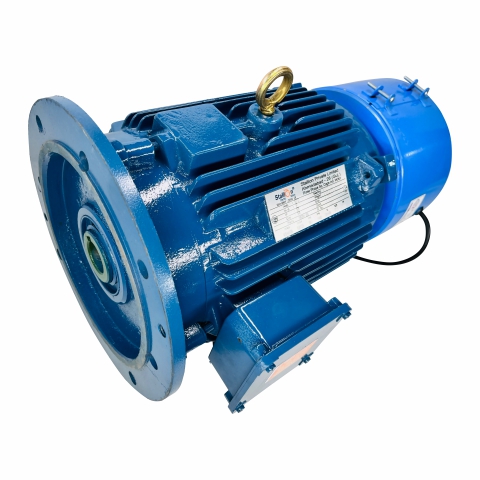

Hollow Motors
Approx. Price: : ₹ 7500 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| Speed | Upto 1400 RPM |
| Brand | Stallion |
| Power | Up to 120 HP / 90 KW |
| Voltage | 415 V AC +/-10% |
| Phase | Three Phase |
| Mounting | Horizontal & Vertical |
| Usage/Application | Industrial |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Number Of Poles | 2, 4, 6 & 8 |
| Frame Size | Up to 280 M |
| Duty | S1 to S8 |
| Finish | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Frame | Upto 280 M |
| Gearbox Diameter | NA |
| Length | As Per IS Standard |
| Load Current | As Per IS Standard |
| Mass Gearhead | NA |
| Maximum Overhung Load | NA |
| Motor Sizes | Upto 90 KW / 120 HP |
| Optimum Operating Voltage Vm | 415 V AC +10% |
| Shaft Diameter | As Per IS Standard |
| Stroke | NA |
| Unit Sizes | KW / HP |
| Weight | Will varying from product model to product model |
| Noise | 76 to 109 dB |
| Protection Class | IP 44 & IP 55 Class |
| Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Size | Upto 280 M |
| Axial Load | NA |
| Ratio | NA |
| Output Torque | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Output Power | Upto 90 KW |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :

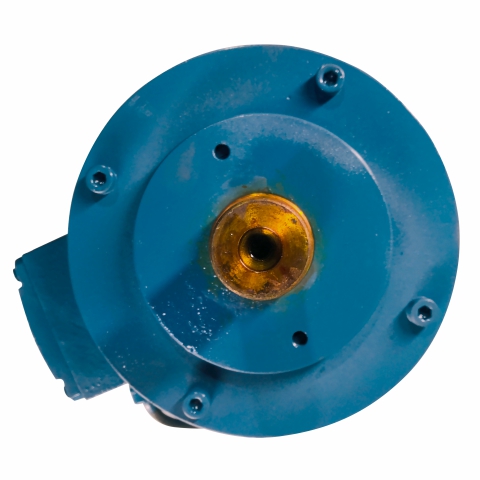

These “Worm Geared Motors” are mainly combination of Gear & Motor, These are inbuilt with Gear Box
This dual functionality motors are widely used in the all type of industries & market, Which is needed geared operation in their operational cycle
Specifically designed for crane & hoist gear operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- All Type of Micro, Small, Medium, Heavy And Large Scale of Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot Mounting
- IS : 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- Cast Iron Body, No-Bake Casting Body, Aluminum Pressure Die Casting Body
Material :
- Stator Winding : Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation : Class-F with temperature rise as Class-B
- Rotor Winding : Pressure die-cast aluminum
- Stamping : CRNO
- Bearing : ZZ Sealed
- Shaft : EN-8 C40 Steel
Paint :
- Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type : Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- Key-Way have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse key-way & balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor
- Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Additional Information:
- Item Code: STL93
- Production Capacity: 500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
Hollow Motors
View More
Customized Motors
Approx. Price: : ₹ 0 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Customized Motors
View More
Standard Motors
Approx. Price: : ₹ 0 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Standard Motors
View More

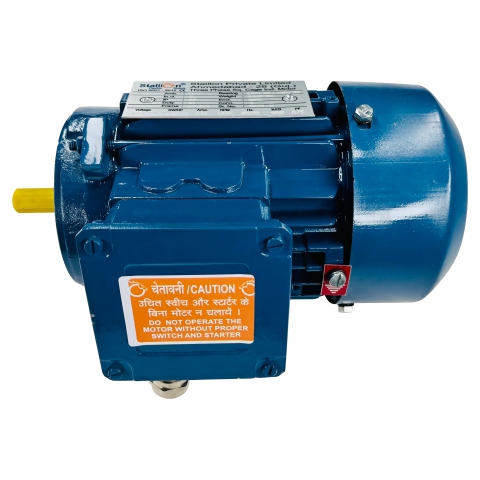

Cooling Tower Motors
Approx. Price: : ₹ 3850 / Unit
Product Details:
| Power | Upto 120 HP |
| Speed | Upto 3000 RPM |
| Type | AC |
| Phase | 3 Phase |
| Material | Electric |
| Brand | Stallion |
| Country of Origin | Made in India |
These "STALLION BRAND" Standard Electric Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "Standard Electric Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL84
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL84
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Cooling Tower Motors
View More

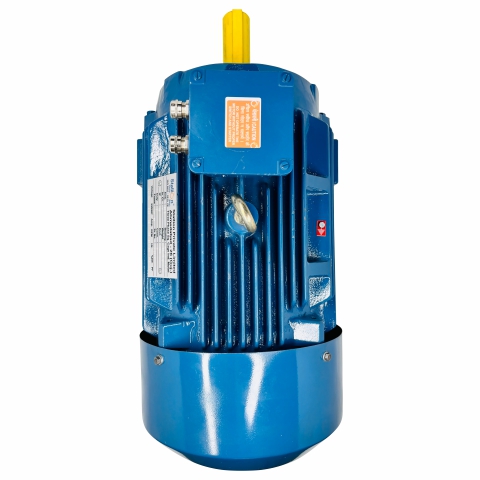

Compressor Motors
Approx. Price: : ₹ 3850 / Unit
Product Details:
| Power | Upto 120 HP |
| Speed | Upto 3000 RPM |
| Type | AC |
| Phase | 3 Phase |
| Material | Electric |
| Brand | Stallion |
| Country of Origin | Made in India |
These "STALLION BRAND" Standard Electric Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "Standard Electric Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL84
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL84
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Compressor Motors
View More

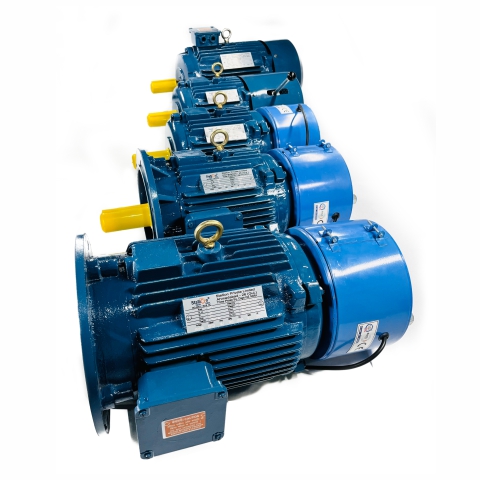

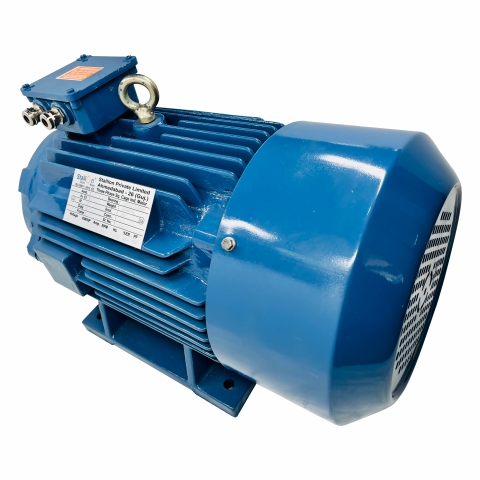

AC Motors
Approx. Price: : ₹ 5100 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| No Of Phase | Three Phase |
| Rated Power | Upto 120 HP |
| Brand | Stallion |
| Motor Type | 3 Phase AC Electric Induction Standard Motor |
| Speed | Upto 3000 RPM |
| Power Rating | Upto 90 KW |
| IP Rating | IP44 & IP55 |
| Warranty Period | As Per Standard Company Policy |
| Voltage | 415 V AC +/- 10% |
| No Of Poles | 2, 4, 6 & 8 |
| Mounting Type | Foot, Flange, Foot Cum Flange, Face |
| Frame Size | Upto 280 M |
| Insulation Class | F |
| Features | Specially designed as per required duties Also, customize with defferancial frame size Vs HP output |
| Usage/Application | Used in the all type of industries & market |
| Material | Electric |
| Capacitance | NA |
| Ce Marking | Have CE Mark |
| Electromagnetic Brake | Suitable for all type of brake |
| Mass Motor | Differncial as per frame size |
| Permissible Load Inertia J | NA |
| Rotation Direction | CW, CCW |
| Standard | Follow only IS Standard for mfg. |
| Starting Torque Motor Shaft | Depending of HP Output Vs RPM |
| Pole | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| Ambient Temperature | 40 DegreeC to 45 DegreeC |
| Protection | Upto IP55 |
| Rated Speed | Upto 3000 RPM |
| Max Speed | Upto 3000 RPM |
| Rated Torque | Depending of HP Output Vs Pole |
| Dimensions | As Per IS Standard |
| Maximum Output Torque | Depending of HP Output Vs Pole |
| Output Speed | Upto 3000 RPM |
| Shaft Diameter | As Per IS Standard as well as customized |
| Stall Torque | Depending of HP Output Vs Pole |
| Max. Pressure | NA |
| Max. Flow Rate | NA |
| Max. Flow Temperature | NA |
| Bearing Type | ZZ Sealed |
| Self Priming Capability | NA |
| Detergent System | NA |
| Pump Type | NA |
| Pump Material | NA |
| Cableb Length | NA |
| Current Rating | Depending on HP output |
| Certification | IS |
| Duity Type | Have range of all the duties |
| Country of Origin | Made in India |

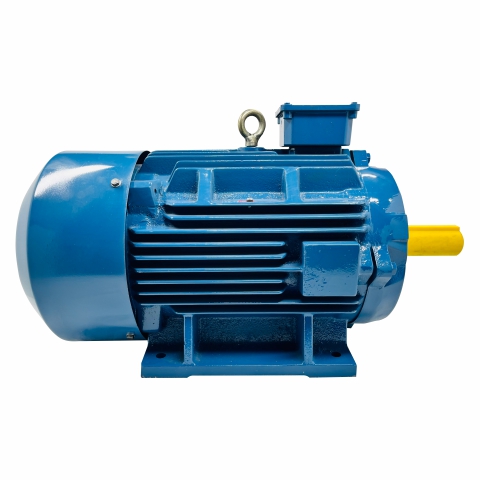

These "STALLION BRAND" AC Induction Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "AC Induction Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL101
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL101
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
AC Motors
View More

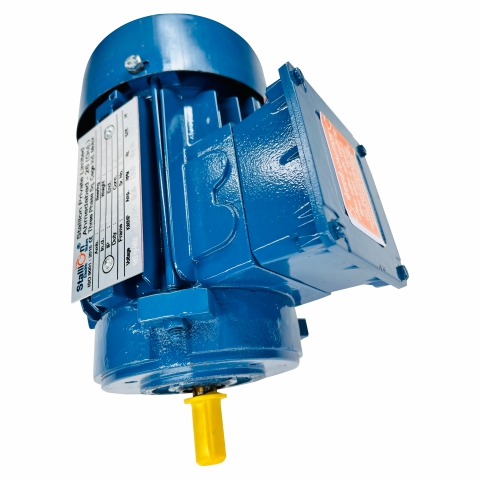

Electric Motors
Approx. Price: : ₹ 3800 / Unit
Product Details:
| Number of Poles | 2, 4, 6 & 8 |
| Power | Upto 120 HP |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC +/-10% |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting, Lifting, Travelling & Other All Type Of Industries |
| Capacity | Upto 120 HP |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color, As Per Customize Also |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL105 |
| No Load Speed | Upto 3000 RPM |
| Shape | As Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Varnishing, Red Coat, Final Oil Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Depending on differncial frame size |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Sealeded Grease Bearing |
| Bearing Type | ZZ Sealed |
| Customized | Frame size customized also As per Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Varnishing, Cleaning & Painting |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self Type |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |

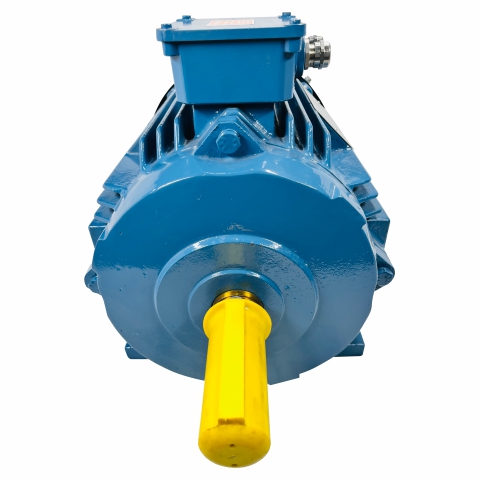

These "STALLION BRAND" 3 Phase Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "3 Phase Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Electric Motors
View More
Induction Motors
Approx. Price: : ₹ 4150 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| No Of Phase | Three Phase |
| Rated Power | Upto 120 HP |
| Brand | Stallion |
| Motor Type | 3 Phase AC Electric Induction Standard Motor |
| Speed | Upto 3000 RPM |
| Power Rating | Upto 90 KW |
| IP Rating | IP44 & IP55 |
| Warranty Period | As Per Standard Company Policy |
| Voltage | 415 V AC +/- 10% |
| No Of Poles | 2, 4, 6 & 8 |
| Mounting Type | Foot, Flange, Foot Cum Flange, Face |
| Frame Size | Upto 280 M |
| Insulation Class | F |
| Features | Specially designed as per required duties Also, customize with defferancial frame size Vs HP output |
| Usage/Application | Used in the all type of industries & market |
| Material | Electrical |
| Capacitance | NA |
| Ce Marking | Have CE Mark |
| Electromagnetic Brake | Suitable for all type of brake |
| Mass Motor | Differncial as per frame size |
| Permissible Load Inertia J | NA |
| Rotation Direction | CW, CCW |
| Standard | Follow only IS Standard for mfg. |
| Starting Torque Motor Shaft | Depending of HP Output Vs RPM |
| Pole | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| Ambient Temperature | 40 to 45 DegreeC |
| Protection | Upto IP55 |
| Rated Speed | Upto 3000 RPM |
| Max Speed | Upto 3000 RPM |
| Rated Torque | Depending of HP Output Vs Pole |
| Dimensions | As Per IS Standard |
| Maximum Output Torque | Depending of HP Output Vs Pole |
| Output Speed | Upto 3000 RPM |
| Shaft Diameter | As Per IS Standard as well as customized |
| Stall Torque | Depending of HP Output Vs Pole |
| Max. Pressure | NA |
| Max. Flow Rate | NA |
| Max. Flow Temperature | NA |
| Bearing Type | ZZ Sealed |
| Self Priming Capability | NA |
| Detergent System | NA |
| Pump Type | NA |
| Pump Material | NA |
| Cableb Length | NA |
| Current Rating | Depending on HP output |
| Certification | IS |
| Duity Type | Have range of all the duties |
| Country of Origin | Made in India |
These "STALLION BRAND" Three Phase Induction Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "Three Phase Induction Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Induction Motors
View More

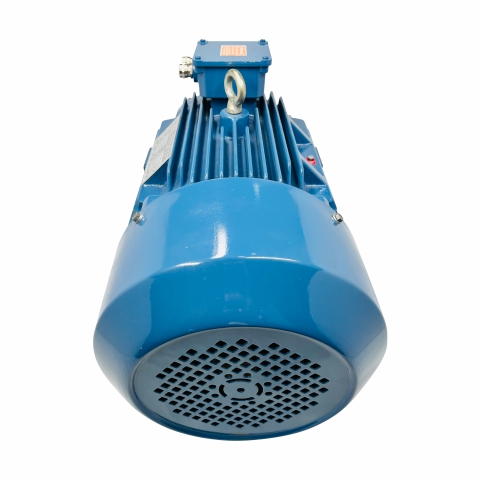

Squirrel Cage Induction Motors
Approx. Price: : ₹ 4250 / Unit
Product Details:
| Power | Up to 90 KW |
| Speed | Standard |
| Usage/Application | Industrial |
| IP Rating | IP55 |
| Brand | Stallion |
| Mounting Type | Foot cum Flange Mount, Foot Mount, Flange Mount, Face Mount |
| Voltage | 415 V AC |
| Mounting | Horizontal & Vertical |
| Frame Size | Upto 280 M |
| No Of Phase | Three Phase |
| No Of Poles | 2, 4, 6 & 8 |
| Type | 415 V AC 3 Phase |
| Color | In Standardized as Graphite Grey is Stallion Brand Color,As Per Customize Also |
| Motor Voltage | 415 V AC +/- 10% |
| Frequency | 50 Hz. +/-5% |
| Insulation Class | F |
| Ambient Temperature Deg Celsius | 40 to 45 DegreeC |
| Automation Grade | NA |
| Bearing Lubrication | ZZ Sealed |
| Cooling Method | TEFC & Other |
| Current | As Per IS Standard |
| Drip Cover | NA |
| Heater Indicator | NA |
| Inverter Code | NA |
| Model Name/Number | STL82 |
| Motor Horsepower | Upto 120 HP |
| Motor Lead Termination | As Per IS Standard |
| Motor Standard | Upto IE3 |
| Peak Current | NA |
| Shaft Diameter Inch | NA |
| Temperature Degree Celsius | NA |
| Warranty In Months | Standard |
| Weight | NA |
| Rating | As Per IS Standard |
| Executation Standard | IS |
| Energy Efficiency Grade | Upto IE3 |
| Operation Mode | DOL,DOL STAR,DOL DELTA,STAR-DELTA |
| Enclosed Protect Class | Upto IP55 |
| Mounting Method | Horizontal & Vertical |
| Rated Torque | As Per IS Standard |
| Noise | 76 to 109 dB |
| Dimensions | As Per IS Standard |
| Batteries Required | NA |
| Maximum Output Torque | Upto 700% |
| Output Speed | As Per IS Standard Sleep minus Synchronous Speed |
| Power Rating | Upto 90 KW |
| Stall Torque | NA |
| Length | As Per IS Standard |
| Width | As Per IS Standard |
| Depth | As Per IS Standard |
| Motor Type | Three Phase Electric Motor |
| Enclosure | TEFC & Other |
| Altitude | Upto 1000m |
| Relative Humidity | NA |
| Degree Of Protection | Upto IP 55 |
| Position Of Terminal Box | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Connection | STAR,DELTA,STAR-DELTA |
| Direction Of Rotation | CW,CCW |
| Grease Type | Standard if Not Sealed |
| Greasing Arrangements | Yes if Not Sealed |
| Paint | Synthetic,Auto |
| Output | Upto 90 KW |
| Duty Cycle | As Per IS Standard |
| Brake Torque | NA |
| Protection | Upto IP 55 |
| Poles | 2,4,6 & 8 |
| Flange | B & C Type |
| Terminal Box | Casting,Aluminum |
| Main Brake Features | NA |
| Lubrication System | NA |
| Ambient Condition | NA |
| Breaking Capacity | NA |
| Continuous Power | NA |
| Continuous Stall Torque | NA |
| Coordination Type | NA |
| Electrical Connection | 3PE |
| Maximum Mechanical Speed | Upto 3000 RPM |
| Motor Flange Size | As Per IS Standard |
| Mounting Support | NA |
| Number Of Motor Stacks | NA |
| Nominal Output Power | Upto 90 KW |
| Nominal Speed | Upto 3000 RPM |
| Nominal Torque | As Per IS Standard |
| Peak Stall Torque | NA |
| Range Compatibility | NA |
| Second Shaft | NA |
| Shaft End | NA |
| Shaft Length | NA |
| Sustainable Offer Status | NA |
| Torque Constant | NA |
| Trip Unit Rating | NA |
| Utilisation Category | NA |
| Country of Origin | Made in India |
| Number of Poles | 2,4,6,8 |
| No Load Speed | Range As 500 to 3000 RPM |
Squirrel Cage Induction Motors
View More
3 Phase Electric Motor
Approx. Price: : ₹ 4100 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| Brand | Stallion |
| Power | Up to 90 KW |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC +/-10% |
| Usage/Application | Industrial |
| IP Rating | IP44 & IP55 |
| Mounting | Horizontal & Vertical |
| Frame Size | Upto 280 M |
| No Of Phase | Three Phase |
| No Of Poles | 2, 4, 6 & 8 |
| Type | 415 V AC 3 Phase |
| Color | In Standardized as Graphite Grey is Stallion Brand Color,As Per Customize Also |
| Motor Voltage | 415 V AC +/- 10% |
| Frequency | 50 Hz. +/-5% |
| Insulation Class | F |
| Ambient Temperature Deg Celsius | 40 DegreeC to 50 DegreeC |
| Automation Grade | NA |
| Bearing Lubrication | ZZ Sealed |
| Cooling Method | TEFC & Other |
| Current | As Per IS Standard |
| Drip Cover | NA |
| Heater Indicator | NA |
| Inverter Code | NA |
| Model Name/Number | STL106 |
| Motor Horsepower | Upto 120 HP |
| Motor Lead Termination | As Per IS Standard |
| Motor Standard | Upto IE3 |
| Peak Current | NA |
| Shaft Diameter Inch | NA |
| Temperature Degree Celsius | NA |
| Warranty In Months | Standard |
| Weight | NA |
| Rating | As Per IS Standard |
| Executation Standard | IS |
| Energy Efficiency Grade | Upto IE3 |
| Operation Mode | DOL , DOL STAR, DOL DELTA, STAR-DELTA |
| Enclosed Protect Class | Upto IP55 |
| Mounting Method | Horizontal & Vertical |
| Rated Torque | As Per IS Standard |
| Noise | 76 to 109 dB |
| Dimensions | As Per IS Standard |
| Batteries Required | NA |
| Maximum Output Torque | Upto 700% |
| Output Speed | As Per IS Standard Sleep minus Synchronous Speed |
| Power Rating | Upto 90 KW |
| Stall Torque | NA |
| Length | As Per IS Standard |
| Width | As Per IS Standard |
| Depth | As Per IS Standard |
| Motor Type | Three Phase Electric AC Induction Motor |
| Enclosure | TEFC & Other |
| Altitude | Upto 1000m |
| Relative Humidity | NA |
| Degree Of Protection | Upto IP 55 |
| Position Of Terminal Box | TOP, RHS, TOP & LHS, RHS & LHS, LHS & TOP |
| Connection | STAR, DELTA, STAR-DELTA |
| Direction Of Rotation | CW, CCW |
| Grease Type | Standard if Not Sealed |
| Greasing Arrangements | Yes if Not Sealed |
| Paint | Synthetic, Auto |
| Output | Upto 90 KW |
| Duty Cycle | As Per IS Standard |
| Brake Torque | NA |
| Protection | Upto IP 55 |
| Poles | 2, 4 , 6 & 8 |
| Flange | B & C Type |
| Terminal Box | PVC, Casting, Aluminum |
| Main Brake Features | NA |
| Lubrication System | NA |
| Ambient Condition | NA |
| Breaking Capacity | NA |
| Continuous Power | NA |
| Continuous Stall Torque | NA |
| Coordination Type | NA |
| Electrical Connection | 3PE |
| Maximum Mechanical Speed | Upto 3000 RPM |
| Motor Flange Size | As Per IS Standard |
| Mounting Support | NA |
| Number Of Motor Stacks | NA |
| Nominal Output Power | Upto 90 KW |
| Nominal Speed | Upto 3000 RPM |
| Nominal Torque | As Per IS Standard |
| Peak Stall Torque | NA |
| Range Compatibility | NA |
| Second Shaft | NA |
| Shaft End | NA |
| Shaft Length | NA |
| Sustainable Offer Status | NA |
| Torque Constant | NA |
| Trip Unit Rating | NA |
| Utilisation Category | NA |
| Country of Origin | Made in India |
These "STALLION BRAND" 3 Phase Electric Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
3 Phase Electric Motor
View More
Three Phase Electric Motor
Approx. Price: : ₹ 4250 / Unit
Product Details:
| Power | Up to 90 KW |
| Speed | Standard |
| Usage/Application | Industrial |
| IP Rating | IP55 |
| Brand | Stallion |
| Mounting Type | Foot cum Flange Mount, Foot Mount, Flange Mount, Face Mount |
| Voltage | 415 V AC |
| Mounting | Horizontal & Vertical |
| Frame Size | Upto 280 M |
| No Of Phase | Three Phase |
| No Of Poles | 2, 4, 6 & 8 |
| Type | 415 V AC 3 Phase |
| Color | In Standardized as Graphite Grey is Stallion Brand Color,As Per Customize Also |
| Motor Voltage | 415 V AC +/- 10% |
| Frequency | 50 Hz. +/-5% |
| Insulation Class | F |
| Ambient Temperature Deg Celsius | 40 to 45 DegreeC |
| Automation Grade | NA |
| Bearing Lubrication | ZZ Sealed |
| Cooling Method | TEFC & Other |
| Current | As Per IS Standard |
| Drip Cover | NA |
| Heater Indicator | NA |
| Inverter Code | NA |
| Model Name/Number | STL82 |
| Motor Horsepower | Upto 120 HP |
| Motor Lead Termination | As Per IS Standard |
| Motor Standard | Upto IE3 |
| Peak Current | NA |
| Shaft Diameter Inch | NA |
| Temperature Degree Celsius | NA |
| Warranty In Months | Standard |
| Weight | NA |
| Rating | As Per IS Standard |
| Executation Standard | IS |
| Energy Efficiency Grade | Upto IE3 |
| Operation Mode | DOL,DOL STAR,DOL DELTA,STAR-DELTA |
| Enclosed Protect Class | Upto IP55 |
| Mounting Method | Horizontal & Vertical |
| Rated Torque | As Per IS Standard |
| Noise | 76 to 109 dB |
| Dimensions | As Per IS Standard |
| Batteries Required | NA |
| Maximum Output Torque | Upto 700% |
| Output Speed | As Per IS Standard Sleep minus Synchronous Speed |
| Power Rating | Upto 90 KW |
| Stall Torque | NA |
| Length | As Per IS Standard |
| Width | As Per IS Standard |
| Depth | As Per IS Standard |
| Motor Type | Three Phase Electric Motor |
| Enclosure | TEFC & Other |
| Altitude | Upto 1000m |
| Relative Humidity | NA |
| Degree Of Protection | Upto IP 55 |
| Position Of Terminal Box | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Connection | STAR,DELTA,STAR-DELTA |
| Direction Of Rotation | CW,CCW |
| Grease Type | Standard if Not Sealed |
| Greasing Arrangements | Yes if Not Sealed |
| Paint | Synthetic,Auto |
| Output | Upto 90 KW |
| Duty Cycle | As Per IS Standard |
| Brake Torque | NA |
| Protection | Upto IP 55 |
| Poles | 2,4,6 & 8 |
| Flange | B & C Type |
| Terminal Box | Casting,Aluminum |
| Main Brake Features | NA |
| Lubrication System | NA |
| Ambient Condition | NA |
| Breaking Capacity | NA |
| Continuous Power | NA |
| Continuous Stall Torque | NA |
| Coordination Type | NA |
| Electrical Connection | 3PE |
| Maximum Mechanical Speed | Upto 3000 RPM |
| Motor Flange Size | As Per IS Standard |
| Mounting Support | NA |
| Number Of Motor Stacks | NA |
| Nominal Output Power | Upto 90 KW |
| Nominal Speed | Upto 3000 RPM |
| Nominal Torque | As Per IS Standard |
| Peak Stall Torque | NA |
| Range Compatibility | NA |
| Second Shaft | NA |
| Shaft End | NA |
| Shaft Length | NA |
| Sustainable Offer Status | NA |
| Torque Constant | NA |
| Trip Unit Rating | NA |
| Utilisation Category | NA |
| Country of Origin | Made in India |
| Number of Poles | 2,4,6,8 |
| No Load Speed | Range As 500 to 3000 RPM |
Three Phase Electric Motor
View More

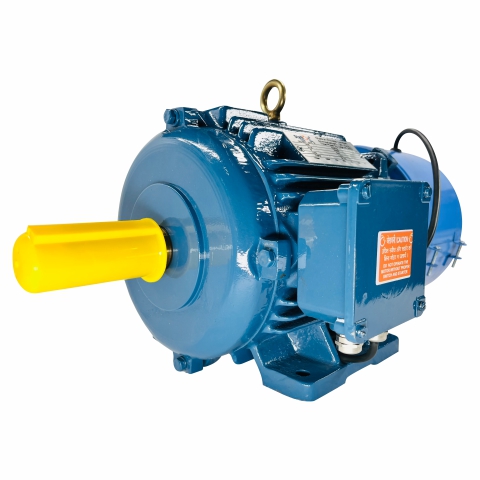

Three Phase Induction Motor
Approx. Price: : ₹ 4150 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| No Of Phase | Three Phase |
| Rated Power | Upto 120 HP |
| Brand | Stallion |
| Motor Type | 3 Phase AC Electric Induction Standard Motor |
| Speed | Upto 3000 RPM |
| Power Rating | Upto 90 KW |
| IP Rating | IP44 & IP55 |
| Warranty Period | As Per Standard Company Policy |
| Voltage | 415 V AC +/- 10% |
| No Of Poles | 2, 4, 6 & 8 |
| Mounting Type | Foot, Flange, Foot Cum Flange, Face |
| Frame Size | Upto 280 M |
| Insulation Class | F |
| Features | Specially designed as per required duties Also, customize with defferancial frame size Vs HP output |
| Usage/Application | Used in the all type of industries & market |
| Material | Electrical |
| Capacitance | NA |
| Ce Marking | Have CE Mark |
| Electromagnetic Brake | Suitable for all type of brake |
| Mass Motor | Differncial as per frame size |
| Permissible Load Inertia J | NA |
| Rotation Direction | CW, CCW |
| Standard | Follow only IS Standard for mfg. |
| Starting Torque Motor Shaft | Depending of HP Output Vs RPM |
| Pole | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| Ambient Temperature | 40 to 45 DegreeC |
| Protection | Upto IP55 |
| Rated Speed | Upto 3000 RPM |
| Max Speed | Upto 3000 RPM |
| Rated Torque | Depending of HP Output Vs Pole |
| Dimensions | As Per IS Standard |
| Maximum Output Torque | Depending of HP Output Vs Pole |
| Output Speed | Upto 3000 RPM |
| Shaft Diameter | As Per IS Standard as well as customized |
| Stall Torque | Depending of HP Output Vs Pole |
| Max. Pressure | NA |
| Max. Flow Rate | NA |
| Max. Flow Temperature | NA |
| Bearing Type | ZZ Sealed |
| Self Priming Capability | NA |
| Detergent System | NA |
| Pump Type | NA |
| Pump Material | NA |
| Cableb Length | NA |
| Current Rating | Depending on HP output |
| Certification | IS |
| Duity Type | Have range of all the duties |
| Country of Origin | Made in India |
These "STALLION BRAND" Three Phase Induction Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "Three Phase Induction Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Three Phase Induction Motor
View More
3 Phase Induction Motor
Approx. Price: : ₹ 4150 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| No Of Phase | Three Phase |
| Rated Power | Upto 120 HP |
| Brand | Stallion |
| Motor Type | 3 Phase AC Electric Induction Standard Motor |
| Speed | Upto 3000 RPM |
| Power Rating | Upto 90 KW |
| IP Rating | IP44 & IP55 |
| Warranty Period | As Per Standard Company Policy |
| Voltage | 415 V AC +/- 10% |
| No Of Poles | 2, 4, 6 & 8 |
| Mounting Type | Foot, Flange, Foot Cum Flange, Face |
| Frame Size | Upto 280 M |
| Insulation Class | F |
| Features | Specially designed as per required duties Also, customize with defferancial frame size Vs HP output |
| Usage/Application | Used in the all type of industries & market |
| Material | Electrical |
| Capacitance | NA |
| Ce Marking | Have CE Mark |
| Electromagnetic Brake | Suitable for all type of brake |
| Mass Motor | Differncial as per frame size |
| Permissible Load Inertia J | NA |
| Rotation Direction | CW, CCW |
| Standard | Follow only IS Standard for mfg. |
| Starting Torque Motor Shaft | Depending of HP Output Vs RPM |
| Pole | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| Ambient Temperature | 40 to 45 DegreeC |
| Protection | Upto IP55 |
| Rated Speed | Upto 3000 RPM |
| Max Speed | Upto 3000 RPM |
| Rated Torque | Depending of HP Output Vs Pole |
| Dimensions | As Per IS Standard |
| Maximum Output Torque | Depending of HP Output Vs Pole |
| Output Speed | Upto 3000 RPM |
| Shaft Diameter | As Per IS Standard as well as customized |
| Stall Torque | Depending of HP Output Vs Pole |
| Max. Pressure | NA |
| Max. Flow Rate | NA |
| Max. Flow Temperature | NA |
| Bearing Type | ZZ Sealed |
| Self Priming Capability | NA |
| Detergent System | NA |
| Pump Type | NA |
| Pump Material | NA |
| Cableb Length | NA |
| Current Rating | Depending on HP output |
| Certification | IS |
| Duity Type | Have range of all the duties |
| Country of Origin | Made in India |
These "STALLION BRAND" Three Phase Induction Motors are specifically designed for all the application & considoring with all type of duty cycle fulfill in the same brand
This "Three Phase Induction Motor" are vastly used in the all type of industries & market
Operation :
- Ideally suitable for all types of duties such as...
- Continous duty
- Short time duty
- Intermittent periodic duty
- Intermittent periodic duty with starting
- Intermittent periodic duty with starting and electric braking
- Continous duty with Intermittent periodic loading
- Continous duty with starting and electric braking
- Continous duty with periodic speed changes
Frame & Range :
- Frame 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
- Cast Iron Body, No-Bake Casting Body, Aluminum Body
Operating Conditions :
- Motor Supply Voltage : 415 V +/- 10%
- Motor Supply Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
IS Code :
- IS : 1231 for Foot Mounted
- IS : 2223 for Flange Mounted
- IS : 325 for 3-Ph. Indu. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for International Standard for Electric Motors
Features :
- Specially designed as per required duties
- Also, customize with defferancial frame size Vs HP output as per end user requirement
- Suitable with All Type of cooling method and all type of attachement, Which is used in the market
- Robustly constructed
- Efficient performance throughout the motor's life-span
- Excellent performce in Load Inertia Vs Motor Speed
- Optimize power consumption from IE1 to IE2, IE2 to IE3, Etc.
Recommended :
- Insulated bearing with Thermister/RTD for 250 Frame onward
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
Request
Callback
Additional Information:
- Item Code: STL83
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: Avialable In PVC Wrapping / Wooden Box / Metal Box
3 Phase Induction Motor
View More
Vertical Motors
Approx. Price: : ₹ 0 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Vertical Motors
View More
Horizontal Mounting Motors
Approx. Price: : ₹ 0 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Horizontal Mounting Motors
View More
Special Motors
Approx. Price: : ₹ 0 / Unit
Product Details:
Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier
We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.
Special Motors
View More
Geared Motor
Approx. Price: : ₹ 5500 / Unit
Product Details:
| Minimum Order Quantity | 1 Piece |
| Speed | Upto 1400 RPM |
| Brand | Stallion |
| Power | Up to 120 HP |
| Type | AC |
| Voltage | 415 V AC +/-10% |
| Phase | Three Phase |
| Material | Electric |
| Mounting | Horizontal & Vertical |
| Usage/Application | Industrial |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Number Of Poles | 2, 4, 6 & 8 |
| Frame Size | Up to 280 M |
| Duty | S1 to S8 |
| Finish | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Frame | Upto 280 M |
| Gearbox Diameter | NA |
| Length | As Per IS Standard |
| Load Current | As Per IS Standard |
| Mass Gearhead | NA |
| Maximum Overhung Load | NA |
| Motor Sizes | Upto 90 KW / 120 HP |
| Optimum Operating Voltage Vm | 415 V AC +10% |
| Shaft Diameter | As Per IS Standard |
| Stroke | NA |
| Unit Sizes | KW / HP |
| Weight | NA |
| Noise | 76 to 109 dB |
| Protection Class | IP 44 & IP 55 Class |
| Size | Upto 280 M |
| Axial Load | NA |
| Ratio | NA |
| Output Torque | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Output Power | Upto 90 KW |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “Geared Motors” are mainly combination of Gear & Motor, These are inbuilt with Gear Box
This dual functionality motors are widely used in the all type of industries & market, Which is needed geared operation in their operational cycle
Specifically designed for crane & hoist gear operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- All Type of Micro, Small, Medium, Heavy And Large Scale of Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot Mounting
- IS : 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- Cast Iron Body, No-Bake Casting Body, Aluminum Pressure Die Casting Body
Material :
- Stator Winding : Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation : Class-F with temperature rise as Class-B
- Rotor Winding : Pressure die-cast aluminum
- Stamping : CRNO
- Bearing : ZZ Sealed
- Shaft : EN-8 C40 Steel
Paint :
- Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type : Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- Key-Way have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse key-way & balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor
- Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Additional Information:
- Item Code: STL92
- Production Capacity: 500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
Geared Motor
View More
